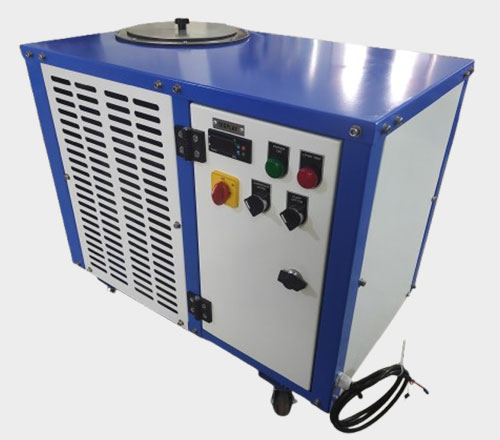

Oil Chiller
Oil Chiller Manufacturers in Pune
Thermochill Technology is a trusted Oil Chiller Manufacturers in Pune, Oil Chiller Suppliers in Pune, and Oil Chiller Dealers in Pune. Since 2012, we’ve crafted robust oil coolers—also called oil-to-air coolers—to keep industrial oils at ideal temperatures. Our Mild Steel 15 Ton Oil Chiller combines reliability with low maintenance, making it an excellent long term investment for precision processes.
Oil Chiller Manufacturers, Suppliers, Dealers in Pune
Oil Chiller Manufacturers in Pune and Oil Chiller Suppliers in Pune rely on the region’s strong manufacturing base. Consequently, our Pune plant produces over 300 units per year. Moreover, we export to neighboring states and beyond, thanks to ISO 9001–certified processes.
Overview of the Oil Chiller: Specifications, Types, Applications, and How It Works
An oil chiller regulates the temperature of hydraulic, compressor, or gearbox oils by rejecting heat to a secondary medium. Key specifications for our standard 15 Ton unit include:
- Capacity: 2 TR (15 Ton)
- Material: Mild Steel
- Power: Three-phase, 50 Hz
- Warranty: 1 year
We offer two main types: a basic standalone oil chiller and a specialized hydraulic oil chiller. These systems serve CNC machines, injection molds, and plastic extrusion lines. Finally, you’ll see why a properly sized chiller prevents overheating, extends equipment life, and improves process stability.
What Is an Oil Chiller?
An oil chiller is a closed‑loop cooling system that maintains oil at set temperatures. It consists of an evaporator (where oil gives off heat), a compressor, a condenser (water‑ or air‑cooled), and an expansion valve. By keeping oil within 20–35 °C, these chillers prevent viscosity shifts and ensure consistent lubrication.
Specification of the Oil Chiller
| Specification | Details |
|---|---|
| Capacity | 2 TR (15 Ton) |
| Construction Material | Mild Steel |
| Phase | Three-Phase |
| Frequency | 50 Hz |
| Cooling Medium | Air or Water (optional) |
| Warranty | 1 Year |
| Dimensions (approx.) | 1.8 m × 1.0 m × 1.5 m |
| Weight | 450 kg |
Types of the Oil Chiller
- Standard Oil Chiller: Designed for general industrial use, this model features a plate‑and‑shell evaporator. It offers simple controls and easy service access.
- Hydraulic Oil Chiller: Tailored for hydraulic systems, it includes larger heat‑exchange surfaces and an integrated pump. This ensures precise temperature control under variable flow rates.
Applications of the Oil Chiller
- CNC Machining: Maintains cutting‑oil viscosity to improve surface finish and tool life.
- Injection Molding: Keeps hydraulic oil at steady temperatures, reducing cycle times and scrap.
- Gearbox Cooling: Protects gears from heat buildup, preventing premature wear.
- Compressor Lubrication: Prevents oil breakdown in high‑load compressors, enhancing uptime.
How Oil Chiller Works?
First, hot oil enters the evaporator, where it transfers heat to refrigerant. Next, the compressor raises refrigerant pressure and temperature. Then, the condenser rejects heat to air or water. Finally, the expansion valve lowers refrigerant pressure, readying the cycle to repeat.
Oil Chiller Ordering, Compliance, and Safety Information
When you order, please specify your unit’s oil flow rate and desired temperature range. All ThermoChill oil chillers comply with CE and BIS safety standards. Additionally, we include over‑pressure relief valves, low‑flow shut‑offs, and digital temperature alarms to protect equipment and personnel.
Why Choose Oil Chiller from Us?
- Decade‑Long Expertise: Since 2012, our in‑house R&D has optimized oil‑cooling technology for diverse industries.
- Energy‑Efficient Designs: Our chillers achieve up to 15 % lower power consumption than conventional units.
- Rigorous Quality Control: Each unit passes multi‑point factory tests, ensuring leak‑free operation and consistent performance.
- Customizable Solutions: We tailor controls, condensers, and footprints to fit your plant layout and process needs.
- Responsive After‑Sales Support: From installation training to spare‑parts delivery, our Pune team is ready to help. Therefore, ThermoChill Technology is your go‑to choice among Oil Chiller Manufacturers in Pune, Oil Chiller Suppliers in Pune, and Oil Chiller Dealers in Pune.
Get Oil Chiller in India | ThermoChill Technology
ThermoChill Technology stands as a trusted Oil Chiller manufacturer in Pune, supplier in Pune, and exporter from India. Our turnkey services cover sizing, installation, and ongoing maintenance.
To discuss your cooling requirements, Contact Our sales team today and secure a competitive quote tailored to your application.
